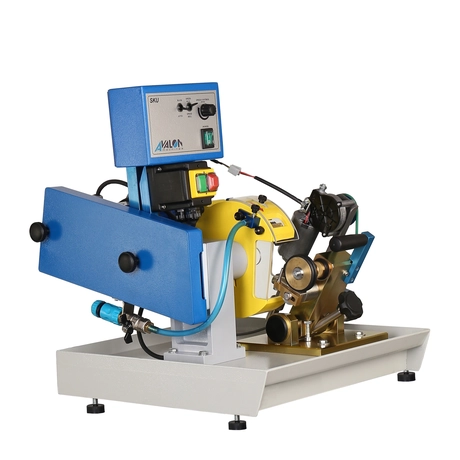

Ball Sizing Machine Sku

Technical Data:

• upply: 230 V; 50 Hz
• power: 0,65 kW
• rpm of spindle: 4000
• dimensions: 570x510x610 mm (WxDxH)
• weight: 73 kg
• diamond discs diameter: ø 150 mm

Application:

• calibrating of balls made from different materials (amber, glass, ceramics, natural and synthetic stones etc.) by means of profile discs with diamond coating

Advantages:

• highest accuracy +/- 0,02 mm
• highest precision of working components with the possibility of eliminating backlash
• quiet work and corrosion protection
• variable speed regulation of spindle
• possibility to work with water circulation

Working Kit:

• control panel with regulation of the drive motor
• ball supporting dops SKU 3 pcs (ø 5, 7, 9 mm)
• rubber wheels SKU 3 pcs (12, 14, 16 mm)

Accessories:

• profile discs with diamond coating for different ball diameters
• ball supporting dops SKU (ø4, ø5, ø6, ø7, ø9, ø10, ø11, ø12, ø15, ø20, ø25, ø30 mm)
• rubber wheels SKU (ø12, ø14, ø16, ø25 mm)
• Base with pump PBM
• attachment SZK/P
• attachment SK2/P
• Base with pump PBM
