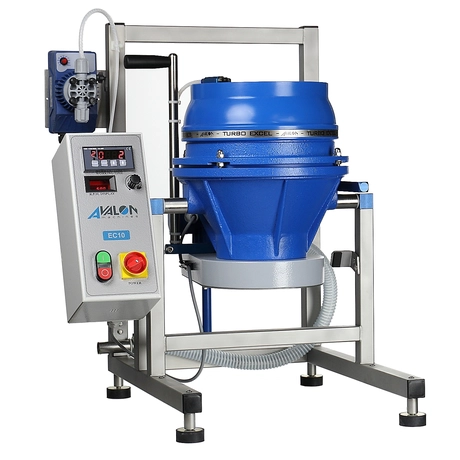

DISC FINISHING MACHINE EC10

DISC FINISHING MACHINE EC10

Technical Data:

  • supply: 230 V; 50 Hz
  • power: 0,6 kW
  • dimensions: 610x590x770 mm (WxDxH)
  • weight: 56 kg
  • working bowl capacity: 10 l.
  • working bowl inside diameter : 265 mm

Application:

  • available for wet (EC10 W) or dry processing (EC10 D)
  • designed for mass finishing of small workpieces (up to 2 kg at one time)
  • suitable for deburring, radiusing, degreasing, cleaning, smoothing, brightening, polishing
  • processing with ceramic, plastic and porcelain chips as well as stainless steel shot

Advantages:

  • compact desktop version of Disc Finishing Machine suitable for small and medium factories
  • optimized media movement and excellent processing results due to curved flow-optimized design of the working bowl
  • processing of very thin pieces and trouble-free maintenance through use of a very precise gap system (0,05 mm upwards)
  • tilted working bowl for easy unloading
  • toroidal movement prevents pieces from sticking to each other and results in targeted material erosion
  • processing time is several times shorter comparing to Vibratory Machines
  • reliability and durability - polyurethane lining of the working bowl is extremely wear-resistant (8 times higher than steel)

Working Kit:

  • Disc Finishing Machine EC10 W: dosing pump, control panel with timer and frequency inverter
  • Disc Finishing Machine EC10 D: air pump, control panel with timer and frequency inverter

Accessories:

  • manual separating unit without sieve
  • plastic sieves (6, 7, 8, 10, 12, 14 mm)
  • stainless steel sieves (4x4, 6x6; 8x8; 10x10; 12x12; 14x14; 16x16 mm)
  • compound level sensor with compound tank (20 liters)
  • lid with filter for EC10 D
  • sound dampening lid for EC10 W
