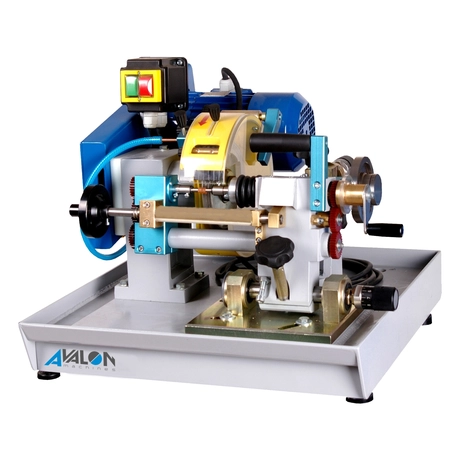

Cylindrical Grinding Machine Szk

Cylindrical Grinding Machine Szk

Technical Data:

  • supply: 230 V; 50 Hz
  • power: 0,55 kW
  • rpm of spindle: 4000 rpm
  • dimensions: 530x570x460 mm (WxDxH)
  • weight: 74 kg
  • diamond disc diameter: ø 150 mm


  • shaping of olives, barrels, tears from different materials (amber, glass, ceramics, natural and synthetic stones etc.) by means of template and profile discs with diamond coating


  • possibility to modify the machine by mounting different attachments (SKU/P, SK2/P)
  • wide range of forms possible
  • quiet work and corrosion protection
  • quick clamping of the workpiece by pair of centers
  • possibility to work with water circulation

Working Kit:

  • pair of centers: fi 1,5 mm + 8 mm


  • profile discs with diamond coating
  • templates up to order
  • pair of centers 1,5 lub 8 mm
  • base with pump PBM
  • attachment SKU/P
  • attachment SK2/P
  • attachment SK2/P

Machines For Amber

Set of machines for amber processing is an efficient solution for stone processing factories. Creating of multiple shapes or drilling become easier by use of our equipment.
